GEZ…ETL-2RS

產品編號：GEZ…ETL-2RS?19.05~152.4

滑動磨擦副：鋼/PTFE編織物

產品特點：產品特點與GE…ETL-2RS系列相同，但為英制尺寸。

使用溫度范圍：－30℃～＋130℃

????

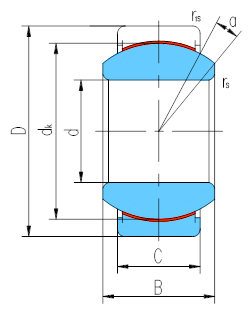

軸承型號 Bearing number	外形尺寸 Dimensions 　　　　　mm/inch								額定載荷 Load ratings kN		重量 Weight ≈kg
軸承型號 Bearing number	d	D	B	C	dk	rs min	r1s min	α? ≈	動載荷 Dynamic	靜載荷 Static	重量 Weight ≈kg
GEZ19ETL-2RS	19.05	31.75	16.662	14.275	27.5	0.3	0.6	6	50	117	0.053
GEZ19ETL-2RS	0.75	1.25	0.656	0.562	1.081	0.012	0.024	6	50	117	0.053
GEZ22ETL-2RS	22.225	36.513	19.431	16.662	32	0.3	0.6	6	69	160	0.085
GEZ22ETL-2RS	0.875	1.4375	0.756	0.656	1.258	0.012	0.024	6	69	160	0.085
GEZ25ETL-2RS	25.4	41.275	22.225	19.05	36.5	0.3	0.6	6	104	250	0.121
GEZ25ETL-2RS	1	1.625	0.875	0.75	1.437	0.012	0.024	6	104	250	0.121
GEZ31ETL-2RS	31.75	50.8	27.762	23.8	45.5	0.6	0.6	6	160	390	0.23
GEZ31ETL-2RS	1.25	2	1.093	0.937	1.788	0.024	0.024	6	160	390	0.23
GEZ34ETL-2RS	34.925	55.563	30.15	26.187	49	0.6	1	5	190	460	0.35
GEZ34ETL-2RS	1.375	2.1875	1.187	1.031	1.926	0.024	0.04	5	190	460	0.35
GEZ38ETL-2RS	38.1	61.913	33.325	28.575	54.7	0.6	1	6	235	560	0.42
GEZ38ETL-2RS	1.5	2.4375	1.312	1.125	2.154	0.024	0.04	6	235	560	0.42
GEZ44ETL-2RS	44.45	71.438	38.887	33.325	63.9	0.6	1	6	320	765	0.64
GEZ44ETL-2RS	1.75	2.8125	1.531	1.312	2.511	0.024	0.04	6	320	765	0.64
GEZ50ETL-2RS	50.8	80.963	44.45	38.1	73	0.6	1	6	415	1000	0.93
GEZ50ETL-2RS	2	3.1875	1.75	1.5	2.869	0.024	0.04	6	415	1000	0.93
GEZ57ETL-2RS	57.15	90.488	50.013	42.85	82	0.6	1	6	525	1260	1.3
GEZ57ETL-2RS	2.25	3.5625	1.969	1.687	3.223	0.024	0.04	6	525	1260	1.3
GEZ63ETL-2RS	63.5	100.013	55.55	47.625	92	1	1	6	655	1570	1.85
GEZ63ETL-2RS	2.5	3.9375	2.187	1.875	3.616	0.04	0.04	6	655	1570	1.85
GEZ69ETL-2RS	69.85	111.125	61.112	52.375	100	1	1	6	785	1880	2.4
GEZ69ETL-2RS	2.75	4.375	2.406	2.062	3.937	0.04	0.04	6	785	1880	2.4
GEZ76ETL-2RS	76.2	120.65	66.675	57.15	109.5	1	1	6	935	2250	3.1
GEZ76ETL-2RS	3	4.75	2.625	2.25	4.303	0.04	0.04	6	935	2250	3.1
GEZ82ETL-2RS	82.55	130.175	72.238	61.9	119	1	1	6	1100	2650	3.8
GEZ82ETL-2RS	3.25	5.125	2.844	2.437	4.685	0.04	0.04	6	1100	2650	3.8
GEZ88ETL-2RS	88.9	139.7	77.775	66.675	128	1	1	6	1280	3070	4.8
GEZ88ETL-2RS	3.5	5.5	3.062	2.625	5.04	0.04	0.04	6	1280	3070	4.8
GEZ95ETL-2RS	95.25	149.225	83.337	71.425	137	1	1	6	1460	3520	5.8
GEZ95ETL-2RS	3.75	5.875	3.281	2.812	5.393	0.04	0.04	6	1460	3520	5.8
GEZ101ETL-2RS	101.6	158.75	88.9	76.2	146	1	1	6	1660	4000	7
GEZ101ETL-2RS	4	6.25	3.5	3	5.748	0.04	0.04	6	1660	4000	7
GEZ107ETL-2RS	107.95	168.275	94.463	80.95	155	1	1	6	1880	4510	8.4
GEZ107ETL-2RS	4.25	6.625	3.719	3.187	6.102	0.04	0.04	6	1880	4510	8.4
GEZ114ETL-2RS	114.3	177.8	100.013	85.725	164.5	1	1	6	2110	5070	9.8
GEZ114ETL-2RS	4.5	7	3.937	3.375	6.476	0.04	0.04	6	2110	5070	9.8
GEZ120ETL-2RS	120.65	187.325	105.562	90.475	173.5	1	1	6	2350	5650	11.5
GEZ120ETL-2RS	4.75	7.375	4.156	3.562	6.83	0.04	0.04	6	2350	5650	11.5
GEZ127ETL-2RS	127	196.85	111.125	95.25	183	1	1	6	2610	6270	13.5
GEZ127ETL-2RS	5	7.75	4.375	3.75	7.204	0.04	0.04	6	2610	6270	13.5
GEZ152ETL-2RS	152.4	222.25	120.65	104.775	207	1	1	5	3250	7800	17.5
GEZ152ETL-2RS	6	8.75	4.75	4.125	8.15	0.04	0.04	5	3250	7800	17.5

內、外圈可用不銹鋼制造，軸承型號后面加“X”標識，即GEZ…ETL-2RS/X; 可提供密封圈為“2GS”和不帶密封圈的向心關節軸承。
