產品編號：GEH…HTL 100～1000
滑動磨擦副： 鋼/PTFE編織物
產品特點：外圈徑向分為兩半，用螺釘鎖緊，材料為碳鋼，磷化，球面粘貼PTFE編織物；內圈材料為軸承鋼，淬火，球面鍍硬鉻。
使用溫度范圍：－50℃～＋150℃
????

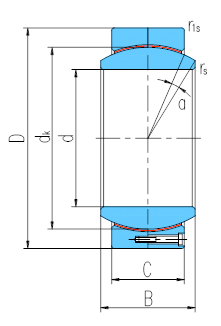

軸 承 型 號 Bearing number | 外 形 尺 寸 Dimensions mm | 額定載荷 Load ratings kN | 重 量 Weight ≈kg | ||||||||
d | D | B | C | dk | rs min | r1s min | α? ≈ | 動載荷 Dynamic | 靜載荷 Static | ||
GEH100HTL | 100 | 150 | 71 | 67 | 135 | 1 | 1 | 2 | 2710 | 4520 | 5.07 |
GEH110HTL | 110 | 160 | 78 | 74 | 145 | 1 | 1 | 2 | 3210 | 5360 | 6.21 |
GEH120HTL | 120 | 180 | 85 | 80 | 160 | 1 | 1 | 2 | 3840 | 6400 | 8.87 |
GEH140HTL | 140 | 210 | 100 | 95 | 185 | 1 | 1 | 2 | 5270 | 8780 | 14.6 |
GEH160HTL | 160 | 230 | 115 | 109 | 210 | 1 | 1 | 2 | 6860 | 11440 | 18.6 |
GEH180HTL | 180 | 260 | 128 | 122 | 240 | 1.1 | 1.1 | 2 | 8780 | 14640 | 26.7 |
GEH200HTL | 200 | 290 | 140 | 134 | 260 | 1.1 | 1.1 | 2 | 10450 | 17420 | 37.1 |
GEH220HTL | 220 | 320 | 155 | 148 | 290 | 1.1 | 1.1 | 2 | 12870 | 21460 | 49.4 |
GEH240HTL | 240 | 340 | 170 | 162 | 310 | 1.1 | 1.1 | 2 | 15060 | 25110 | 57.9 |
GEH260HTL | 260 | 370 | 185 | 175 | 340 | 1.1 | 1.1 | 2 | 17850 | 29750 | 75.2 |
GEH280HTL | 280 | 400 | 200 | 190 | 370 | 1.1 | 1.1 | 2 | 21090 | 35150 | 96 |
GEH300HTL | 300 | 430 | 212 | 200 | 390 | 1.1 | 1.1 | 2 | 23400 | 39000 | 117 |
GEH320HTL | 320 | 460 | 230 | 218 | 414 | 1.1 | 3 | 2 | 27070 | 45120 | 148 |
GEH340HTL | 340 | 480 | 243 | 230 | 434 | 1.1 | 3 | 2 | 29940 | 49910 | 163 |
GEH360HTL | 360 | 520 | 258 | 243 | 474 | 1.1 | 4 | 2 | 34550 | 57590 | 213 |
GEH380HTL | 380 | 540 | 272 | 258 | 494 | 1.5 | 4 | 2 | 38230 | 63720 | 236 |
GEH400HTL | 400 | 580 | 280 | 265 | 514 | 1.5 | 4 | 2 | 40860 | 68100 | 290 |
GEH420HTL | 420 | 600 | 300 | 280 | 534 | 1.5 | 4 | 2 | 44850 | 74760 | 319 |
GEH440HTL | 440 | 630 | 315 | 300 | 574 | 1.5 | 4 | 2 | 51660 | 86100 | 379 |
GEH460HTL | 460 | 650 | 325 | 308 | 593 | 1.5 | 4 | 2 | 54790 | 91320 | 404 |
GEH480HTL | 480 | 680 | 340 | 320 | 623 | 2 | 5 | 2 | 59800 | 99680 | 463 |
GEH500HTL | 500 | 710 | 355 | 335 | 643 | 2 | 5 | 2 | 64620 | 107700 | 529 |
GEH530HTL | 530 | 750 | 375 | 355 | 673 | 2 | 5 | 2 | 71670 | 119450 | 620 |
GEH560HTL | 560 | 800 | 400 | 380 | 723 | 2 | 5 | 2 | 82420 | 137370 | 770 |
GEH600HTL | 600 | 850 | 425 | 400 | 773 | 2 | 6 | 2 | 92760 | 154600 | 903 |
GEH630HTL | 630 | 900 | 450 | 425 | 813 | 3 | 6 | 2 | 103650 | 172760 | 1092 |
GEH670HTL | 670 | 950 | 475 | 450 | 862 | 3 | 6 | 2 | 116370 | 193950 | 1270 |
GEH710HTL | 710 | 1000 | 500 | 475 | 912 | 3 | 6 | 2 | 129960 | 216600 | 1465 |
GEH750HTL | 750 | 1060 | 530 | 500 | 972 | 3 | 6 | 2 | 145800 | 243000 | 1750 |
GEH800HTL | 800 | 1120 | 565 | 530 | 1022 | 3 | 6 | 2 | 162490 | 270830 | 2029 |
GEH850HTL | 850 | 1220 | 600 | 565 | 1112 | 3 | 7.5 | 2 | 188480 | 314140 | 2704 |
GEH900HTL | 900 | 1250 | 635 | 600 | 1142 | 3 | 7.5 | 2 | 205560 | 342600 | 2806 |
GEH950HTL | 950 | 1360 | 670 | 635 | 1242 | 4 | 7.5 | 2 | 236600 | 394330 | 3752 |
GEH1000HTL | 1000 | 1450 | 710 | 670 | 1312 | 4 | 7.5 | 2 | 263710 | 439520 | 4612 |
