產品編號：GX…TL?10～360
滑動磨擦副：鋼/PTFE 編織物
產品特點：座圈材料為軸承鋼，淬火，球面粘貼PTFE編織物；軸圈材料為軸承鋼，淬火，球面鍍硬鉻。
使用溫度范圍：-50℃～+150℃
????

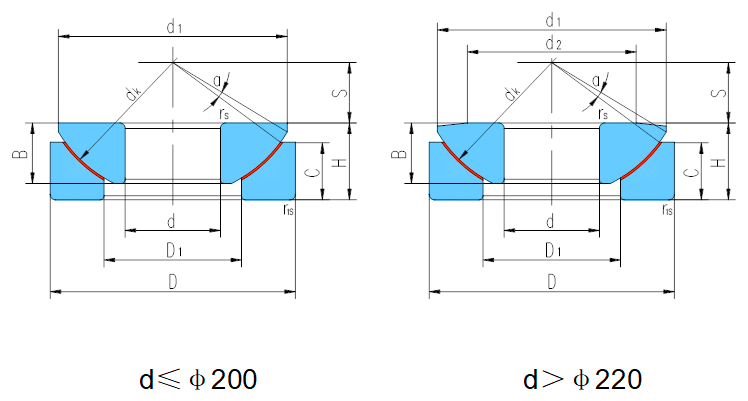

軸 承 型 號 Bearing number | 外 形 尺 寸 Dimensions mm | 額定載荷 Load ratings kN | 重 量 Weight ≈kg | ||||||||||||
d | D | B | C | H | dk | S | d1 max | d2 | D1 min | rs,r1s min | α? ≈ | 動載荷 Dynamic | 靜載荷 Static | ||
GX10TL | 10 | 30 | 7.5 | 7 | 9.5 | 32 | 7 | 27.5 |
| 15.5 | 0.6 | 5 | 99 | 165 | 0.036 |
GX12TL | 12 | 35 | 9.5 | 9.3 | 13 | 38 | 8 | 32 |
| 18 | 0.6 | 5 | 134 | 220 | 0.072 |
GX15TL | 15 | 42 | 11 | 10.8 | 15 | 46 | 10 | 39 |
| 22.5 | 0.6 | 6 | 189 | 315 | 0.108 |
GX17TL | 17 | 47 | 11.8 | 11.2 | 16 | 52 | 11 | 43.5 |
| 27 | 0.6 | 4 | 230 | 380 | 0.137 |
GX20TL | 20 | 55 | 14.5 | 13.8 | 20 | 60 | 12.5 | 50 |
| 31 | 1 | 5 | 290 | 480 | 0.246 |
GX25TL | 25 | 62 | 16.5 | 16.7 | 22.5 | 68 | 14 | 58.5 |
| 34.5 | 1 | 5 | 439 | 730 | 0.415 |
GX30TL | 30 | 75 | 19 | 19 | 26 | 82 | 17.5 | 70 |
| 42 | 1 | 5 | 600 | 1000 | 0.614 |
GX35TL | 35 | 90 | 22 | 20.7 | 28 | 98 | 22 | 84 |
| 50.5 | 1 | 5 | 850 | 1415 | 0.973 |
GX40TL | 40 | 105 | 27 | 21.5 | 32 | 114 | 24.5 | 97 |
| 59 | 1 | 6 | 1085 | 1805 | 1.59 |
GX45TL | 45 | 120 | 31 | 25.5 | 36.5 | 128 | 27.5 | 110 |
| 67 | 1 | 6 | 1405 | 2340 | 2.24 |
GX50TL | 50 | 130 | 33 | 30.5 | 42.5 | 139 | 30 | 120 |
| 70 | 1 | 6 | 1730 | 2880 | 3.14 |
GX60TL | 60 | 150 | 37 | 34 | 45 | 160 | 35 | 140 |
| 84 | 1 | 6 | 2370 | 3950 | 4.63 |
GX70TL | 70 | 160 | 42 | 36.5 | 50 | 176 | 35 | 153 |
| 94.5 | 1 | 3 | 2975 | 4960 | 5.37 |
GX80TL | 80 | 180 | 43.5 | 38 | 50 | 197 | 42.5 | 172 |
| 107.5 | 1 | 4 | 3620 | 6030 | 6.91 |
GX100TL | 100 | 210 | 51 | 46 | 59 | 222 | 45 | 198 |
| 127 | 1.1 | 4 | 4635 | 7725 | 11 |
GX120TL | 120 | 230 | 53.5 | 50 | 64 | 250 | 52.5 | 220 |
| 145 | 1.1 | 3 | 5600 | 9330 | 14 |
GX140TL | 140 | 260 | 61 | 54 | 72 | 274 | 52.5 | 243 |
| 177 | 1.5 | 3 | 5620 | 9365 | 19.1 |
GX160TL | 160 | 290 | 66 | 58 | 77 | 313 | 65 | 271 |
| 200 | 1.5 | 2 | 7000 | 11660 | 25 |
GX180TL | 180 | 320 | 74 | 62 | 86 | 340 | 67.5 | 299 |
| 225 | 1.5 | 4 | 7410 | 12350 | 32.8 |
GX200TL | 200 | 340 | 80 | 66 | 87 | 365 | 70 | 320 |
| 247 | 1.5 | 1 | 7970 | 13280 | 35.4 |
GX220TL | 220 | 370 | 82 | 67 | 97 | 388 | 75 | 350 | 289 | 265 | 1.5 | 7 | 8525 | 14200 | 44.7 |
GX240TL | 240 | 400 | 87 | 73 | 103 | 420 | 77.5 | 382 | 314 | 294 | 1.5 | 6 | 10300 | 17165 | 56.9 |
GX260TL | 260 | 430 | 95 | 80 | 115 | 449 | 82.5 | 409 | 336 | 317 | 1.5 | 7 | 10800 | 18000 | 71.3 |
GX280TL | 280 | 460 | 100 | 85 | 110 | 480 | 80 | 445 | 366 | 337 | 3 | 4 | 17120 | 28530 | 84.7 |
GX300TL | 300 | 480 | 100 | 90 | 110 | 490 | 80 | 460 | 388 | 356 | 3 | 3.5 | 17270 | 28780 | 88.9 |
GX320TL | 320 | 520 | 105 | 91 | 116 | 540 | 95 | 500 | 405 | 380 | 4 | 4 | 21100 | 35160 | 111 |
GX340TL | 340 | 540 | 105 | 91 | 116 | 550 | 95 | 510 | 432 | 380 | 4 | 4 | 23660 | 39430 | 117 |
GX360TL | 360 | 560 | 115 | 95 | 125 | 575 | 95 | 535 | 452 | 400 | 4 | 4 | 25460 | 42430 | 132 |
