產品編號：SF…ES?15～120
滑動磨擦副：鋼/鋼
產品特點：焊接型桿端關節軸承由桿端體和向心關節軸承GE…ES或GEEW…ES組裝而成，用擋圈固定，桿端體材料是易焊接鋼，帶有長方形焊接面；可通過油杯潤滑。
使用溫度范圍：－50℃～＋150℃

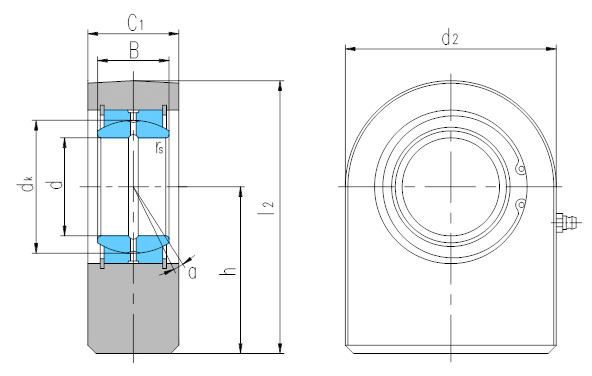

軸 承 型 號 Bearing number | 外 形 尺 寸 Dimensions mm | 額定載荷 Load ratings kN | 重量 Weight ≈kg | |||||||||
d | B | dk | C1
| d2
| h | l2
| rs
| α? ≈ | 動載荷 Dynamic | 靜載荷 Static | ||
SF15ES | 15 | 12 | 22 | 16 | 45 | 31 | 53.5 | 0.3 | 8 | 16 | 53 | 0.22 |
SF16ES | 16 | 14 | 25 | 17.5 | 48 | 35 | 59 | 0.3 | 10 | 21 | 59 | 0.29 |
SF17ES | 17 | 14 | 25 | 17.5 | 48 | 35 | 59 | 0.3 | 10 | 21 | 59 | 0.28 |
SF20ES | 20 | 16 | 29 | 19 | 50 | 38 | 63 | 0.3 | 9 | 30 | 67 | 0.36 |
SF25ES | 25 | 20 | 35.5 | 23 | 55 | 45 | 72.5 | 0.6 | 7 | 48 | 69 | 0.53 |
SF30ES | 30 | 22 | 40.7 | 28 | 65 | 51 | 83.5 | 0.6 | 6 | 62 | 118 | 0.85 |
SF35ES | 35 | 25 | 47 | 30 | 83 | 61 | 102.5 | 0.6 | 6 | 79 | 196 | 1.50 |
SF40ES | 40 | 28 | 53 | 35 | 100 | 69 | 119 | 0.6 | 7 | 99 | 305 | 2.42 |
SF45ES | 45 | 32 | 60 | 40 | 110 | 77 | 132 | 0.6 | 7 | 127 | 386 | 3.39 |
SF50ES | 50 | 35 | 66 | 40 | 123 | 88 | 149.5 | 0.6 | 6 | 156 | 441 | 4.24 |
SF60ES | 60 | 44 | 80 | 50 | 140 | 100 | 170 | 1 | 6 | 245 | 570 | 7.10 |
SF70ES | 70 | 49 | 92 | 55 | 164 | 115 | 197 | 1 | 6 | 313 | 724 | 10.7 |
SF80ES | 80 | 55 | 105 | 60 | 180 | 141 | 231 | 1 | 6 | 400 | 804 | 15.1 |
SF90ES | 90 | 60 | 115 | 65 | 226 | 150 | 263 | 1 | 5 | 488 | 1340 | 23.4 |
SF100ES | 100 | 70 | 130 | 70 | 250 | 170 | 295 | 1 | 7 | 607 | 1516 | 33.1 |
SF110ES | 110 | 70 | 140 | 80 | 295 | 185 | 332.5 | 1 | 6 | 654 | 2340 | 48.5 |
SF120ES | 120 | 85 | 160 | 90 | 360 | 210 | 390 | 1 | 6 | 950 | 3210 | 79.5 |
