軸 承

型 號(hào)

Bearing

number

外 形 尺 寸

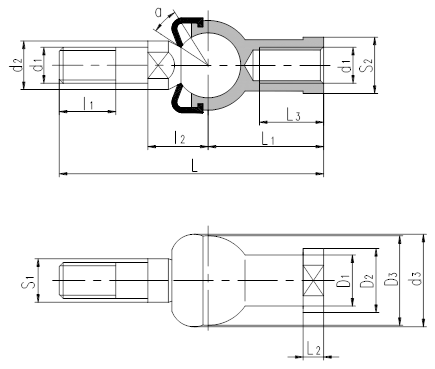

Dimensions                                mm

額定靜載荷

Static load

ratings

kN

重 量

Weight

≈kg

d₁

d₂

d₃

l₁

l₂

S₁

L

L₁

L₂

L₃

D₁

D₂

D₃

S₂

α?

≈

SQZ5-RS

M5

9

19

8

11

7

46

24

4

12

9

11

17

9

15

2.8

0.025

SQZ6-RS

M6

10

20

11

12.2

8

55.2

28

5

15

10

13

20

11

15

3.7

0.041

SQZ8-RS

M8

12

24

12

16

10

65

32

5

16

12.5

16

24

14

15

5.8

0.075

SQZ10-RS

M10×1.25

14

30

15

19.5

11

74.5

35

6.5

18

15

19

28

17

15

8.4

0.12

SQZ12-RS

M12×1.25

17

32

17

21

15

84

40

6.5

20

17.5

22

32

19

15

11

0.18

SQZ14-RS

M14×1.5

19

38

22

23.5

17

103

45

8

25

20

25

36

22

11

15

0.27

SQZ16-RS

M16×1.5

22

44

23

25.5

19

112

50

8

27

22

27

40

22

11

15

0.36

SQZ18-RS

M18×1.5

23

45

25

31

20

130.5

58

10

32

25

31

45

27

11

19

0.54

SQZ20-RS

M20×1.5

23

50

25

29

20

133

63

10

38

27.5

34

45

30

7.5

19

0.57

SQZ22-RS

M22×1.5

27

52

26

33

24

145

70

12

43

30

37

50

32

7.5

23

0.76
